Steering wheels for sailing yachts
Attention to detail, perfection in processing and the use of high-quality, sustainable materials are a matter of course for us.
handwheel
material
according to the respective design
cross section
32 mm
produktion process
with epoxyresin laminated veneerlayers, reinforced with glass- or carbon-fibre
surface primer
3-fold primer with epoxy coating | just oiled
surface painting
Double coating with seawater and UV-resistant high-gloss lacquer
finish
multiple polish
spokes | hub
material
according to the respective design
height
18 mm
procedure
Curing process under 100 bar pressure and 50°C temperature, spokes cnc-milled
Nabe
according to the respective design
dimensions
Ø 900 - 1500 mm | 6 Speichen
Ø 1600 - 1900 mm | 8 Speichen

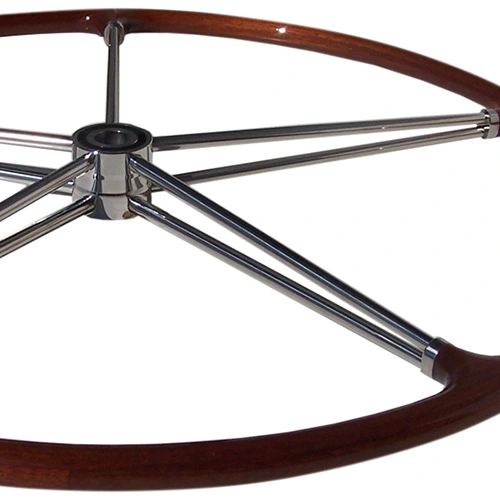

V2A spokes | hub
material
stainless steel V2A, polished
spokes
12/16 mm tapered, wall thickness 1.5mm
hub
turned part made of solid material, 8.283 ° cone
V2A dimensions
Ø 900 - 1700 mm | 5 tandem-spokes
Ø ab 1700 | 8 tandem-spokes

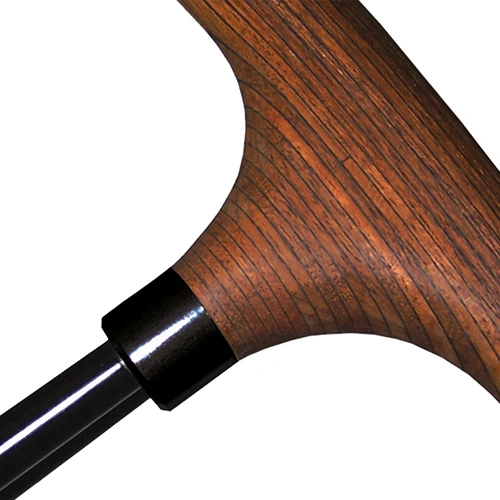

Alu-Line Speichen | Nabe
material
aluminum 6082 with black powder coating
spokes
12/16 mm tapered, wall thickness 1.5mmm
hub
The hub is made of one piece and
constructed so that no welding of the spokes is necessary. The spokes
have an internal thread and can be screwed to the hub to prevent
weakening of the material by welding.
Alu-Line dimensions
Ø 900 - 1600 mm | 5 tandem-spokes
Ø ab 1700 | 7 tandem-spokes
